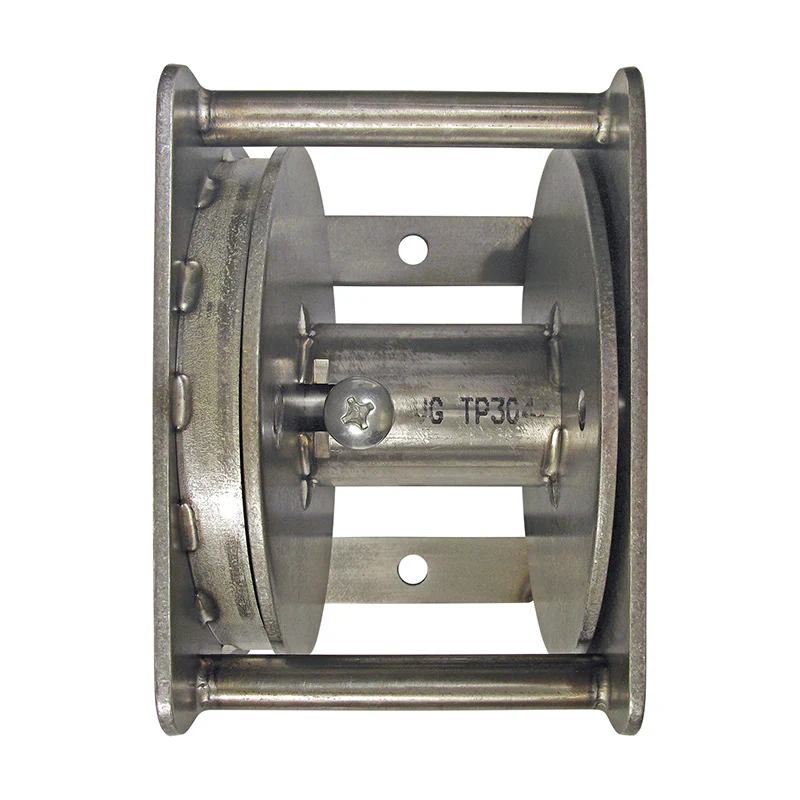

These gearless internal halyard winches are designed for use on flagpoles with a 6″ butt diameter or larger. Built for strength, security, and smooth operation, each winch features cast bronze internal brakes that automatically engage and disengage as needed.

When the winch handle is inserted and rotational pressure is applied, the brake releases to allow raising or lowering of the flag. Once the handle is removed, the brake system locks the cable in place at any position, keeping your flag secure without the need for additional locking devices.

The winch mounts inside the flagpole using two 5/16″-18NC stainless steel bolts with 3-1/2″ mounting centers for a solid, reliable installation.

Size Recommendations by Flagpole Height

• Small Winch – For flagpoles up to 45 ft.

• Large Winch – For flagpoles 50 ft. to 80 ft.

• X-Large Winch – For flagpoles over 80 ft.

Key Features

• Designed for 6″ or larger butt diameter flagpoles

• Gearless operation with cast bronze internal brakes

• Automatically locks when handle is removed

• Secure internal mounting with stainless steel hardware

• Compatible with 1/8″ stainless steel cable (recommended)

• Requires monthly lubrication for optimal performance

Dimensions

Overall Height: 4-1/8″

Width Options:

• Small 3-1/8″

• Large 3-5/8″

• X-Large 6-5/8″

Drum Width Options:

• Small 1-1/2″

• Large 2″

• X-Large 5″

Ideal For

• Internal halyard flagpole systems

• Commercial, municipal, and institutional flagpoles

• High-security or tamper-resistant installations

• Large-scale flag displays
